STEEL AVEX® Fastening System

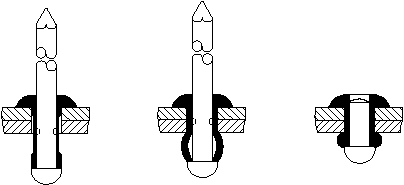

This fastening system is the original multi-grip blind breakstem rivet. Positive stem retention,
complete hole fill and wide grip range are some of the unique benefits
offered.
Benefits:
- Wide Grip Range
One rivet can be used in multiple material thicknesses. This
reduces inventories and eliminates operator error.
- Mechanically Locked
Stem
Stem is locked in shell, eliminating the risk of mandrel head
vibrating loose while providing a weather resistant joint.
- Complete
Hole Fill
The bulbing formation of the Avex® will fill slightly oversized
or irregular holes, providing increased strength and vibration
resistance.
LOW
PROFILE HEAD
| Diameter |
|
|
Steel |
Grip Range |
E (max) |
| 1/8" |
3.2mm |
|
1624-0411 |
.044-156 |
0.450 |
| Hole Size= |
|
|
|
1.10-4.00 |
11.400 |
| A dia.= |
.124-.128 (3.15-3.25) |
|
|
|
|
| B nom= |
.285 (7.22) |
|
|
|
|
| D max= |
.047 (1.19) |
|
|
|
|
| E max= |
.0835 (2.10) |
|
|
|
|
| 5/32" |
4.0mm |
|
1642-0515 |
.047-.187 |
0.550 |
| Hole Size= |
|
|
|
1.20-4.80 |
13.800 |
| A dia.= |
.157-.160 (3.99-4.07) |
|
1624-0616 |
.156-.250 |
0.640 |
| B nom= |
.320 (8.331) |
|
|
4.00-6.30 |
16.200 |
| D max= |
.062 (1.57) |
|
|
|
|
| E max= |
0.1088 |
|
|
|
|
|
|
|
|
|
|
Back to Top
SHEAR & TENSILE STRENGTH
Typical Shear and Tensile Data Steel Avex in lbs. (Newtons)
| Rivet
Diameter |
1624 Series |
| Shear |
Tensile |
| 1/8" (3.2mm) |
300 (1334) |
385 (1710) |
| 5/32" (4.0mm) |
440 (1955) |
530 (2355) |
| 3/16" (4.8mm) |
1624-0612 810 (3605) |
750 (3335) |
| |
1624-0616 1025 (4560) |
780 (3470) |
Back to Top
MATERIALS & FINISH
| Series |
Head Style |
Material |
Finish |
| Body |
Mandrel |
Body |
Mandrel |
| 1624 |
Lo-Profile |
Steel |
Steel |
Zinc Plated |
Zinc Coated |
