STAVEX® Fastening System

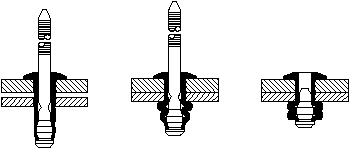

The Stavex fastening system is a multiple grip all-steel breakstem rivet. Unique crimp design provides
wide grip range and smooth bubble formation on tailside. Available in
low profile, large flange, and ountersunk head styles.
Benefits:
- Wide Grip Range
One rivet can be used in multiple material thicknesses, a very unique
feature for an all-steel breakstem rivet.
- Mechanically Locked Stem
Stem is locked in shell, eliminating the risk of mandrel head vibrating
loose while providing a weatherresistant joint.
- Complete Hole Fill
The bulbing formation of the Stavex® will fill slightly oversized
or irregular holes, providing increased strength and vibration resistance.
LOW
PROFILE HEAD
| Diameter |
|
|
Steel |
Grip Range |
M (max) |
| 3/16" |
4.8mm |
|
BS01-0614 |
.045-.250 |
0.540 |
| Hole Size= |
.192-.196 (4.88-4.98) |
|
|
1.52-6.35 |
13.720 |
| A dia.= |
.183-.187 (4.65-4.75) |
|
BS01-0618 |
.060-.375 |
0.670 |
| B nom= |
.387 (9.80) |
|
|
1.52-9.52 |
17.020 |
| D max= |
.061 (1.55) |
|
BS01-0622 |
.250-.500 |
0.790 |
| E max= |
.118 (4.01) |
|
|
6.35-12.70 |
20.070 |
| 1/4" |
6.3mm |
|
1610-4844 |
.060-.300 |
0.660 |
| Hole Size= |
.261-.275 (6.63-6.99) |
|
|
1.52-7.62 |
16.760 |
| A dia.= |
.250-.260 (6.35-6.60) |
|
|
|
|
| B nom= |
.515 (13.10) |
|
|
|
|
| D max= |
.105 (2.67) |
|
|
|
|
| E max= |
.158 (4.01) |
|
|
|
|
|
|
|
|
|
|
Back to Top
LARGE FLANGED HEAD
| Diameter |
|
|
Steel |
Grip Range |
M (max) |
| 3/16" |
4.8mm |
|
BE34-0614 |
.045-.250 |
0.540 |
| Hole Size= |
.192-.196 (4.88-4.98) |
|
|
1.52-6.35 |
13.720 |
| A dia.= |
.183-.187 (4.65-4.75) |
|
BE34-0618 |
.060-.375 |
0.670 |
| B nom= |
0.621 (15.77) |
|
|
1.52-9.52 |
17.020 |
| D max= |
.081 (2.06) |
|
BE34-0622 |
.250-.500 |
0.790 |
| E max= |
.118 (4.01) |
|
|
6.35-12.70 |
20.070 |
|
|
|
|
|
|
Back to Top
COUNTERSUNK
HEAD
| Diameter |
|
|
Steel |
Grip Range |
M (max) |
| 3/16" |
4.8mm |
|
BS04-0614 |
.045-.250 |
0.540 |
| Hole Size= |
.192-.196 (4.88-4.98) |
|
|
1.52-6.35 |
13.720 |
| A dia.= |
.183-.187 (4.65-4.75) |
|
BS04-0618 |
.060-.375 |
0.670 |
| B nom= |
.347 (8.81) |
|
|
1.52-9.52 |
17.020 |
| D max= |
.055 (1.40) |
|
BS04-0622 |
.250-.500 |
0.790 |
| E max= |
.118 (4.01) |
|
|
6.35-12.70 |
20.070 |
|
|
|
|
|
|
Back to Top
SHEAR & TENSILE STRENGTH
Minimum Shear and Tensile Data OF Stavex Fasteners in lbs. (Newtons)
| Rivet Diameter |
Series |
Shear |
Tensile |
| Stem in Shear Plane |
Stem not in Shear Plane |
| 3/16" 4.8mm |
BS01 |
950 (2430) |
450 (2000) |
650 (2890) |
| BE34 |
| BS04 |
| 1/4" 6.3mm |
|
1500 (6670) |
700 (3110) |
800 (3560) |
| 1610-4844 |
| |
Back to Top
MATERIALS & FINISH
| Series |
Head Style |
Material |
Finish |
| Body |
Mandrel |
Body |
Mandrel |
| BS01 |
Low Profile |
Steel |
Steel |
Zinc |
Zinc or Phosphate |
| BE34 |
Large Flange |
Steel |
Steel |
Zinc |
Zinc |
| BS04 |
Countersunk |
Steel |
Steel |
Zinc |
Zinc |
