Avdel Structural Blind Rivets: Monobolt®


MONOBOLT® Fastening System

This fastening system has a positive external locking feature. Requires special nosetip. Good vibration and water resistance. Available in a variety of materials and headstyles.

Benefits of the Monobolt Fastening System:

  • Visible Lock
    External locking mechanism for positive stem retention.
  • High Clamp-up
    Removes gap between sheets easily.
  • Complete Hole Fill and Sealing Capability
    Expands radially during setting to fill even elliptical holes.
  • High Shear and Tensile
    Resists loosening when exposed to variable loads.
  • Protruding Head

  • Large Flanged Head
  • Countersunk Head
  • Tensile Strength Data
  • Material and Finish
  • fastening system
    PRINT THIS PAGE
    APPLICATION INFO & PRICING

    blind rivets

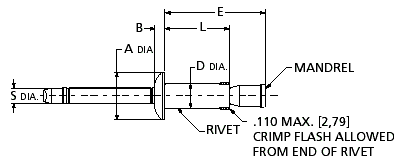

    PROTRUDING HEAD


    Diameter   Steel Aluminum Stainless Grip Range E (max) L (max)
    3/16 (6) 4.8mm SSPV-64 BAPV-64 CCPV-64 .062-.250 0.842 0.416
    Hole Size= .194-.204 (4.93-5.18)     1.57-6.35 21.390 10.57
    A= .355-.400 (9.02-10.16) SSPV-E67 BAPV-E67 CCPV-E67 .062-.437 0.962 0.577
    B max= .090 (2.29)       1.63-11.10 25.430 14.66
    D= .184-.193 (4.67-4.90)
    S= .114-.120 (2.90-3.05)
    1/4 (8) 6.3mm SSPV-86 BAPV-86 CCPV-86 .080-.375 1.181 0.556
    Hole Size= .261-.276 (6.63-7.01)   2.03-9.53 30.000 14.12
    A= .480-.530 (12.19-13.46) SSPV-810 BAPV-810 CCPV-810 .350-.625 1.181
    B max= .117 (2.97)
    D= .254-.260 (6.45-6.60) SSPV-E810 BAPV-E810 CCPV-E810 .080-.625 1.431 0.806
    S= .153-.162 (3.89-4.11)       2.03-15.87 36.850 20.47

    Back to Top

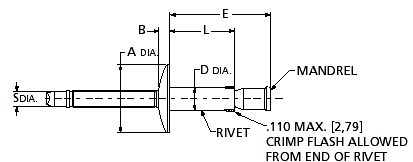

    LARGE FLANGED HEAD


    Diameter     Steel Grip Range E (max) L (max)
    3/16 (6) 4.8mm   SSLVA-64 .062-.250 0.842 0.416
    Hole Size= .194-.204 (4.93-5.18)     1.57-6.35 21.390 10.57
    A= .500-.530 (12.70-13.46) SSLVA-E6-7 .062-.437 0.962 0.577
    B max= .105 (2.67) 1.63-11.10 25.430 14.66
    D= .184-.193 (4.67-4.90)
    S= .114-.120 (2.90-3.05)

    Back to Top

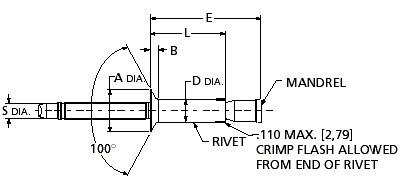

    COUNTERSUNK HEAD


    Diameter     Steel Aluminum Stainless Grip Range E (max) L (max)
    3/16 (6) 4.8mm   SSCV-66 BACV-66 CCCV-66 .125-.331 0.8 0.486
    Hole Size= .194-.204 (4.93-5.18)         3.18-8.41 29.32 12.34
    A= .325-.360 (8.26-9.14)
    B max= .070 (1.78)
    D= .184-.193 (4.67-4.90)
    S= .114-.120 (2.90-3.05)
    1/4 (8) 6.3mm SSCV-88 .125-.475 1.028 0.66
    Hole Size= .261-.276 (6.63-7.01) 3.18-12.07 26.11 16.76
    A= .395-.448 (10.03-11.38)
    B max= .079 (2.01)
    D= .254-.260 (6.45-6.60)
    S= .153-.162 (3.89-4.11)

    Back to Top



    SHEAR & TENSILE STRENGTH


    Minimum Shear and Tensile Data for Monobolts in lbs. (Newtons)

    Rivet Diameter SS Series Steel/Steel
    Shear Tensile Mandrel Push-out
    3/16" (4.8mm) 1300 (5782) 1000 (4448) 100 (445)
    1/4" (6.3mm) 2400 (10675) 1850 (8229) 250 (1112)

    Rivet Diameter BA Series Alum/Alum
    Shear Tensile Mandrel Push-out
    3/16" (4.8mm) 550 (2246) 450 (2002) 50 (222)
    1/4" (6.3mm) 1270 (5649) 830 (3692) 100 (445)

    Rivet Diameter CC Series Stainless
    Shear Tensile Mandrel Push-out
    3/16"
    (4.8mm)
    1300 (5782) 1000 (4448) 100 (445)
    1/4" (6.3mm) 2400 (10675) 1850 (8229) 250 (1112)


    Back to Top

    MATERIALS & FINISH


    Series Head Style Material Finish
    Body Stem Body Stem
    CCPV Protruding Stainless Steel Stainless Steel Bright Bright
    SSPV Protruding Steel Steel Zinc Plate Zinc Plate
    BAPV Protruding Aluminum Aluminum Natural Natural
    SSLVA Large Flanged Steel Steel Zinc Plate Zinc Plate
    SSCV Countersunk Steel Steel Zinc Plate Zinc Plate
