Huck Fasteners - Structural Blind Rivets: Magna-TiteTM
An applied watertight sealant makes this blind rivet especially suitable for oversize holes and repair applications. A large blind-side footprint also makes the fastener ideal for installation in thin or low-strength materials such as aluminum, fiberglass and plastic.
  • Protruding Head Data
    		•
  • Shavable Head Data
    		•
  • Low Profile Data
    		•
  • 100° Countersunk Oval Head
    		•
  • Tensile Strength Data
    		•

    Huck fastener - blind rivet
    PRINT THIS PAGE
    APPLICATION INFO & PRICING

    STRUCTURAL BLIND RIVET PROTRUDING HEAD DATA

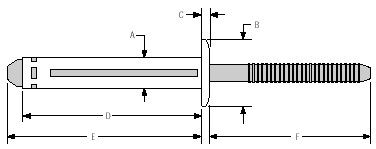

    Hole Size nom .205-.221 A .199 B= .453 C=.117 F min=.940
    Dia. (No.)
    Part No.
    Grip Range
    D max
    E max
    3/16 (6)
    MTP-B6-5S
    .050 - .312
    .890
    1.020
    MTP-B6-6S
    .100 - .375
    .940
    1.070
    MTP-B6-8S
    .250 - .500
    1.090
    1.220
    MTP-B6-10S
    .375 - .625
    1.215
    1.345
    MTP-B6-12S
    .500 - .750
    1.340
    1.470


    Back to Top

    SHAVABLE HEAD DATA



    Hole Size nom =.205-.221 A=.199 B=.453 C=.117 F min=.940
    Dia. (No.)
    Part No.
    Grip Range
    D max
    E max
    3/16 (6)
    MTS-B6-8S
    .050 - .500
    1.010
    1.140
    MTS-B6-12S
    .050 - .750
    1.260
    1.390


    Back to Top

    LOW PROFILE DATA

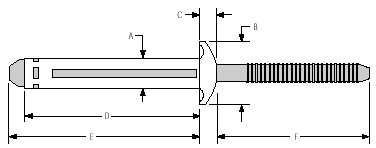

    Hole Size nom =.205-.221 A=.199 B=.453 C=.052
    Dia. (No.)
    Part No.
    Grip Range
    D max
    E max
    F min
    3/16 (6)
    MTLP-B6-4
    .050 - .250
    .840
    1.040
    1.189
    MTLP-B6-8
    .187 - .500
    1.090
    1.140
    .939
    MTLP-B6-12
    .375 - .750
    1.260
    1.390
    1.143
    MTLP-B6-12X
    .050 - .750
    1.260
    1.390
    1.143



    Back to Top

    100° COUNTERSUNK OVAL HEAD



    Hole Size nom =.205-.221 A=.199 B=.355 C=.117 F min=.940
    Dia.
    Part No.
    Grip Range
    D max
    E max
    3/16
    MTV-B6-5S
    .070 - .312
    .910
    1.040
    MTV-B6-7S
    .160 - .410
    1.010
    1.140
    MTV-B6-8S
    .250 - .500
    1.090
    1.220
    MTV-B6-10S
    .375 - .625
    1.215
    1.345
    MTV-B6-12S
    .500 - .750
    1.340
    1.470


    Back to Top

    TENSILE STRENGTH DATA

    Typical Installed Values in Nominal Grip(lbs.)

    Head Styles:
    Protruding
    Shavable
    Low Profile
    Oval
    3/16
    Shear
    630
    630
    630*
    630
    Tensile
    450
    450
    450
    450
    Pin Retention
    90
    90
    90
    90

    MTLP has 630 lbs. Shear In Minimum Grip. and 350 lbs. in all Grips above Minimum Grip.


    Huck Fastener Material
    Sleeve Aluminum
    Pin Aluminum



    Back to Top
