Solid Rivets: Universal Head

solid rivet - universal head
PRINT THIS PAGE
APPLICATION INFO & PRICING

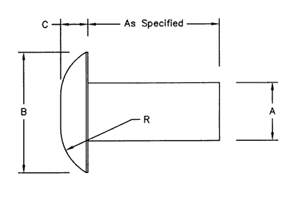

SOLID RIVET STANDARD DIMENSIONS

Shank Diameter Head Diameter Head Thickness Head Radius
A
 B C R approx.
.059/.064 .115/.135 .027/.037 .054
.090/.096 .177/.197 .039/.051 .082
.121/.127 .240/.260 .053/.065 .108
.152/.158 .301/.323 .065/.079 .135
.182/.191 .361/.387 .078/.092 .164
.244/.253 .485/.515 .104/.120 .217
.304/.316 .607/.641 .129/.147 .272

  • Wide variety of materials in stock available for immediate production
    • Aluminum - 5052 & 5056
    • Brass - CDA260 & 270
    • Copper- CDA110
    • Stainless Steel - T-302HQ & T-430
    • Steel - Low Carbon
  • Numerous finishes available
  • Design engineering assistance
  • Custom requirements encouraged
