Semi Tubular Rivets: Oval/Truss Head

semi tubular rivets
PRINT THIS PAGE
APPLICATION INFO & PRICING

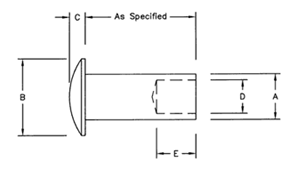

STANDARD DIMENSIONS

Shank Diameter Head Diameter Head Thickness Hole Diameter Hole Depth Clinch Allowance Hole Diameter In Assembly
A
 B C D E

.058/.061 .104/.114 .015/.019 .042/.044 0.046 0.038 0.069
.058/.061 .120/.130 .015/.019 .042/.044 0.046 0.038 0.069
.085/.089 .142/.152 .020/.026 .062/.064 0.067 0.058 0.093
.085/.089 .157/.163 .020/.026 .062/.064 0.067 0.058 0.093
.095/.099 .182/.192 .026/.032 .070/.072 0.074 0.065 0.103
.118/.123 .213/.223 .032/.038 .086/.089 0.093 0.084 0.129
.118/.123 .276/.286 .032/.038 .086/.089 0.093 0.084 0.129
.141/.146 .229/.239 .039/.045 .103/.106 0.110 0.101 0.154
.141/.146 .276/.286 .032/.038 .103/.106 0.110 0.101 0.154
.141/.146 .306/.318 .039/.045 .103/.106 0.110 0.101 0.154
.141/.146 .369/.381 .059/.065 .103/.106 0.110 0.101 0.154
.151/.156 .306/.318 .041/.051 .110/.117 0.155 0.108 0.165
.151/.156 .322/.344 .041/.051 .110/.117 0.155 0.108 0.165
.182/.188 .306/.318 .059/.065 .134/.137 0.155 0.129 0.196
.182/.188 .369/.381 .059/.065 .134/.137 0.155 0.129 0.196
.244/.252 .430/.444 .068/.074 .180/.184 0.193 0.156 0.265
.244/.252 .493/.507 .078/.084 .180/.184 0.193 0.156 0.265
.302/.310 .492/.508 .083/.089 .222/.226 0.266 0.188 0.325
.302/.310 .554/.570 .093/.099 .222/.226 0.266 0.188 0.325
  • Wide variety of materials in stock available for immediate production
    • Aluminum - 5052 & 5056
    • Brass - CDA260 & 270
    • Copper- CDA110
    • Stainless Steel - T-302HQ & T-430
    • Steel - Low Carbon
  • Numerous finishes available
  • Design engineering assistance
  • Custom requirements encouraged
