Solid Rivets: Flat Head

solid rivets - flat head
PRINT THIS PAGE
APPLICATION INFO & PRICING

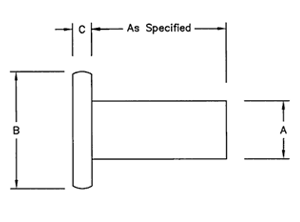

SOLID RIVET STANDARD DIMENSIONS

Shank Diameter Head Diameter Head Thickness
A
 B C
.059/.064 .120/.140 .017/.027
.090/.096 .180/.200 .026/.038
.121/.127 .240/.260 .036/.048
.152/.158 .301/.323 .045/.059
.182/.191 .361/.387 .055/.069
.213/.222 .427/.453 .065/.080
.244/.253 .485/.515 .075/.091
.273/.285 .545/.579 .085/.103
.304/.316 .607/.641 .095/.113
  • Wide variety of materials in stock available for immediate production
    • Aluminum - 5052 & 5056
    • Brass - CDA260 & 270
    • Copper- CDA110
    • Stainless Steel - T-302HQ & T-430
    • Steel - Low Carbon
  • Numerous finishes available
  • Design engineering assistance
  • Custom requirements encouraged
